CORTIZO, an international leader in the design and manufacture of aluminium.

Modern living room with glass sliding doors leading to a balcony with a view of water, trees, and distant hills.

Thermally broken minimalist sliding system that provides maximum luminosity with a minimal aluminium interlock profile. It has an elegant design only 20 mm sightline and offers the possibility of an inlaid closing system and of hiding the frame along the perimeter. Possibility of locking system in the interlock, thus allowing the concealment of the sashes in the frame from a frontal view.

Cortizo CorVision

Cross-section of a modern aluminum sliding glass door with double panes.

Technical Information

The CorVision sliding doors is a bonded wrap around system. the aluminium profile is bonded to the double glazed unit rather than a beaded system allowing for slim sightlines.

  • U Values from 1.3 (W/m²K)

  • Sightlines - 20mm Interlock

    Glazing - Max. 30 mm, Min. 26 mm

    Maximum Sash Dimensions - Width (L) 2500 mm, Height (H) 3000 mm

    Maximum Sash Weight - 320 Kg

  • Up to 6 sashes

    Up to 3 tracks

    Pocket solution possibility in 1, 2, 3 & 4 sashes

    Possibility of interior and exterior corner at 90º without mullion

Close-up of a window frame with glass panels and a black rubber seal, showing the internal metal and plastic components of the window structure.
  • Interior of a modern living room with large floor-to-ceiling glass sliding doors, wooden ceiling, and view of a backyard with grass, trees, and a stone patio.

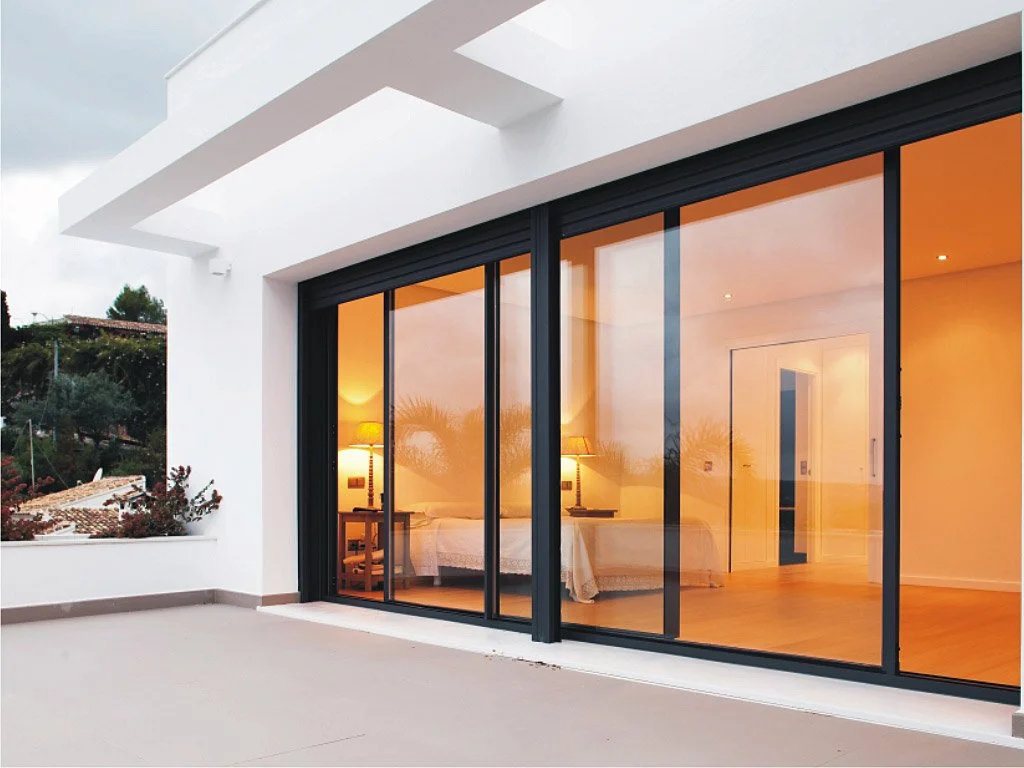

  • Modern apartment with large glass sliding doors revealing a bedroom with lit lamps and a bed inside.
  • Modern single-story house with a flat roof, large glass windows, and a concrete exterior, set on a green lawn under a blue sky with clouds.
A fan deck of RAL Classic color swatches arranged in a semicircle, featuring various shades from yellow to red, blue, green, and neutral tones.

Colours

All of our products are available in any RAL colour from the RAL classics range. some products offer textured and dual colour finishes.

The image shows an entryway with a light blue door and a row of wooden logs stacked on a rack to the right. A colorful coat and shoes are on the floor near the door, and a star-shaped doormat is in front of the door. The ceiling has exposed wooden beams, and the walls are painted white.

Hardware

our range of handle styles and finishes ensures you find a handle that fits the look that you want.

Close-up of window blinds covering a window with a view of greenery outside.

Glazing Options

From Solar controlled glass to integral blinds we can offer a range of different double or triple glazed units to all of our products.
